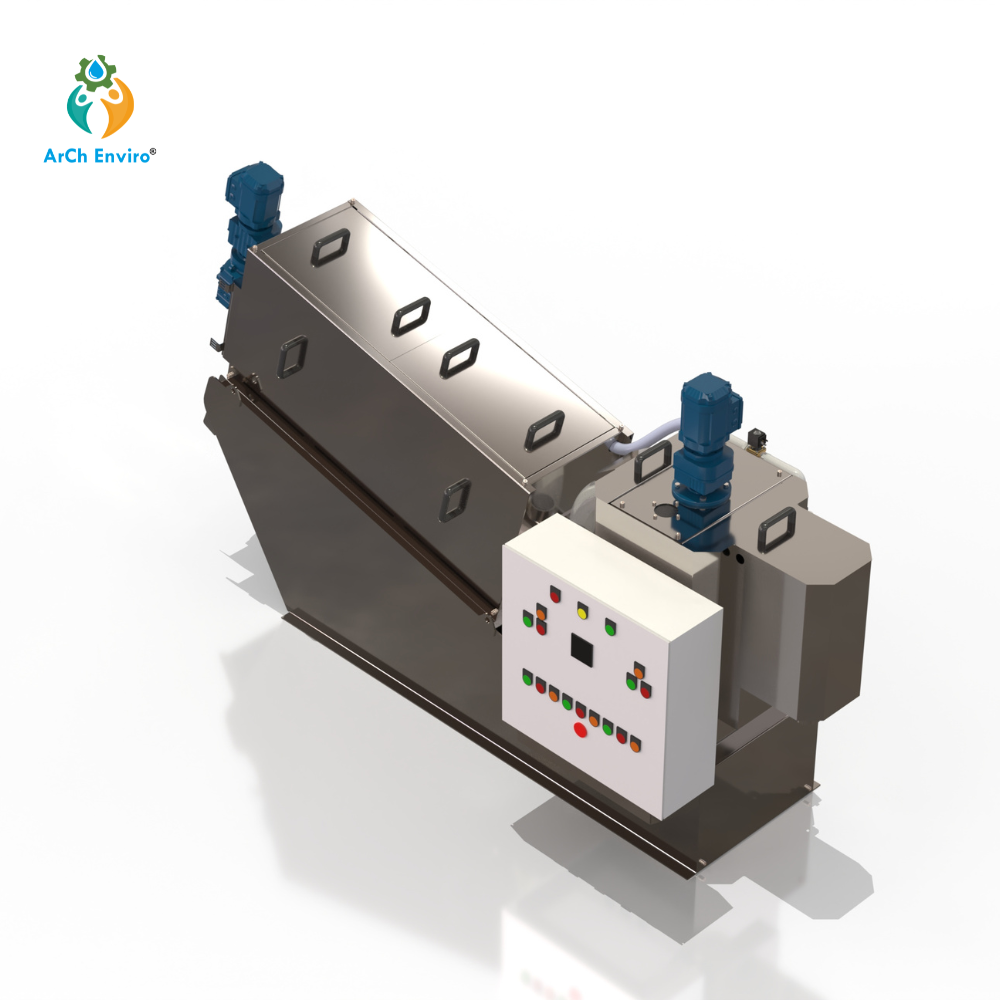

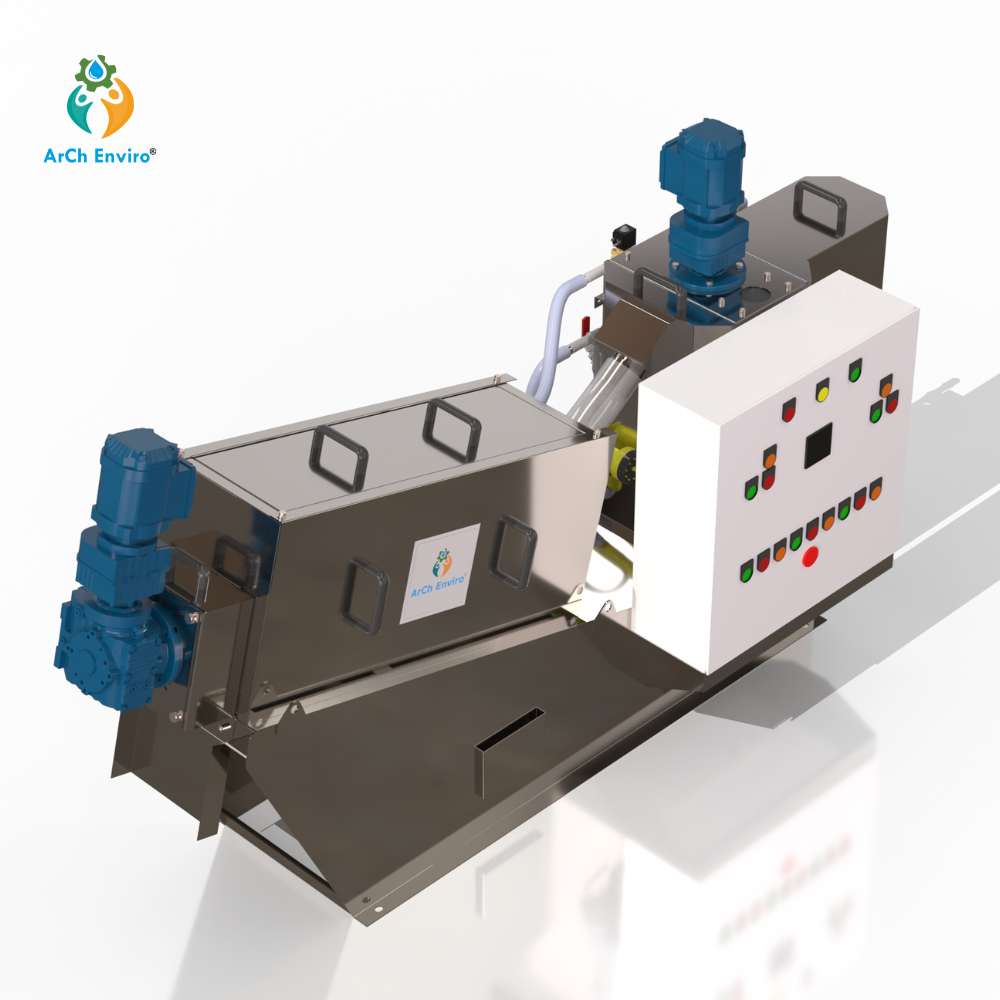

Non Clogging Screw Press Sludge Dewatering Machine with Multi Ring Technology

About Non Clogging Screw Press Sludge Dewatering Machine with Multi Ring Technology

Overview:

Non Clogging Screw Press Sludge Dewatering Machine is designed for continuous sludge dewatering using advanced multi-ring filtration technology. It is suitable for STP and ETP applications requiring reliable and stable operation with minimal maintenance.

Working Principle:

The screw press consists of a filtration unit made of fixed rings and moving rings arranged along a screw shaft. Sludge is conveyed through the screw, where the filtration gap gradually reduces along the length.

The rotation of the screw shaft pushes sludge forward while simultaneously driving the moving rings, which continuously clean the filtration gaps. This prevents clogging and ensures smooth dewatering operation.

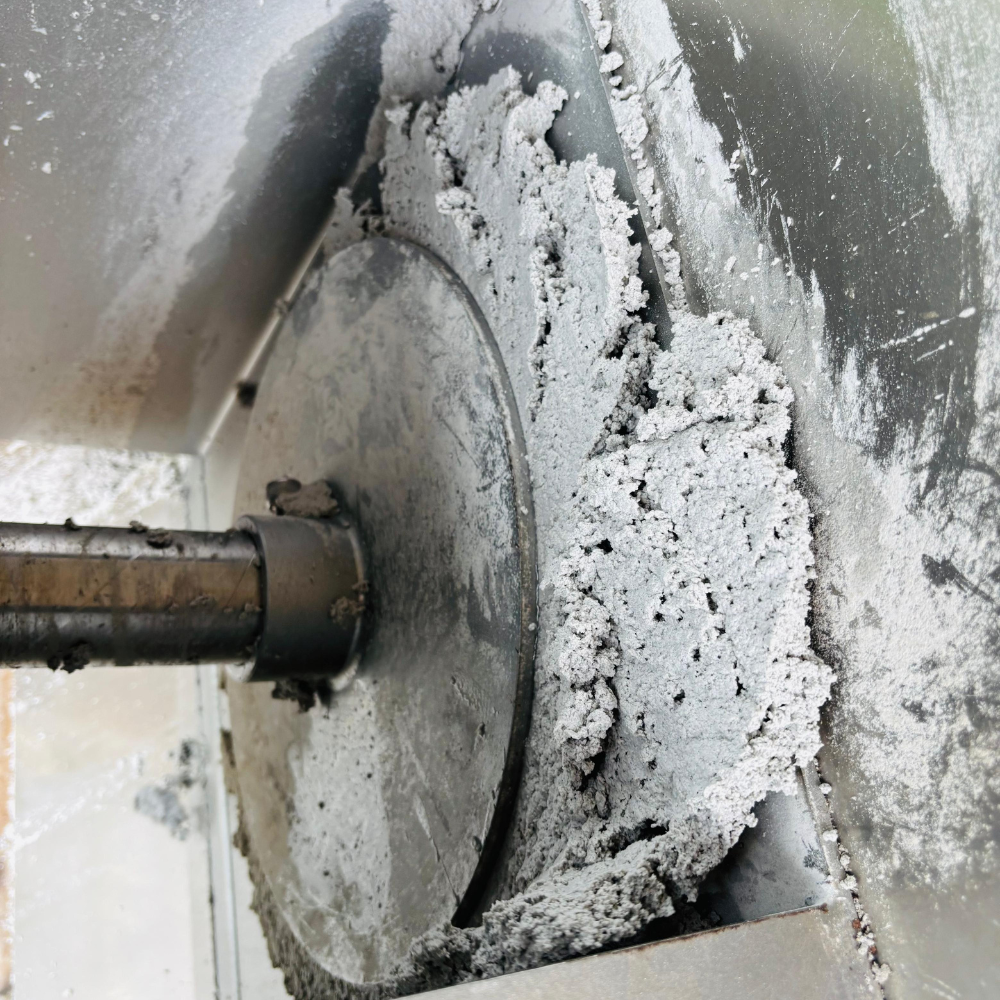

As pressure increases towards the discharge end, water is separated and sludge is dewatered effectively.

Technical Features:

• Multi-ring filtration system (fixed and moving rings)
• Self-cleaning mechanism to prevent clogging
• Gradual pressure build-up for effective dewatering
• Suitable for low concentration sludge
• Continuous and stable operation

Construction Details:

• Stainless Steel (SS 304 / SS 316) construction
• Heavy-duty screw shaft and ring assembly
• Corrosion-resistant design for wastewater applications
• Enclosed structure for improved working conditions

Performance Advantages:

• Prevents clogging even with oily or fibrous sludge
• Reduces need for frequent cleaning
• Ensures stable dewatering performance
• Supports continuous operation with minimal downtime

Applications:

• Sewage Treatment Plants (STP)
• Effluent Treatment Plants (ETP)
• Industrial sludge treatment systems
• Municipal wastewater treatment

Suitable For:

• Plants handling variable sludge characteristics
• Applications requiring non-clogging operation
• Continuous sludge dewatering processes

Selection Note:

Selection depends on sludge type, flow rate, and required dryness level. Technical support can be provided for proper system configuration.
