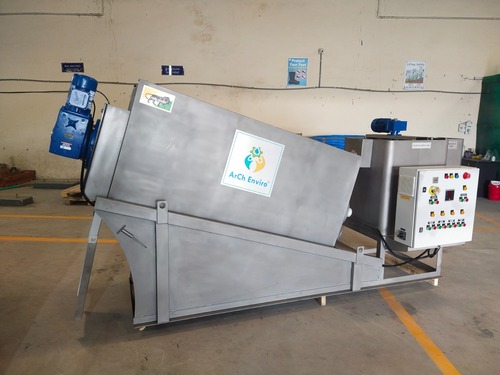

Compact Screw Press Sludge Dewatering Machine for STP ETP

Overview:

Compact Screw Press Sludge Dewatering Machine is designed for efficient sludge dewatering in wastewater treatment plants where space optimization and continuous operation are required. It is suitable for STP and ETP applications with limited installation area.

Application Challenge:

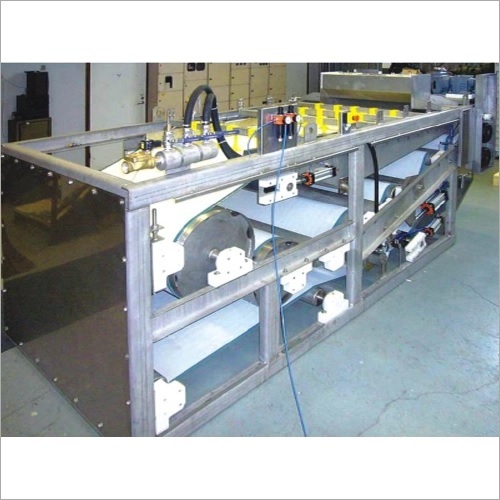

In many treatment plants, conventional dewatering systems such as belt filter presses and centrifuges require large installation space, high power, and complex operation.

Solution:

Screw Press offers a compact and integrated design that reduces footprint while providing efficient sludge thickening and dewatering in a single unit.

Working Principle:

The system uses a screw extrusion mechanism with fixed and moving rings. As sludge moves along the screw shaft, the gap between rings decreases and pressure increases, resulting in solid-liquid separation and sludge dewatering.

Key Features:

• Compact and space-saving design
• Integrated thickening and dewatering
• Low power consumption
• Self-cleaning mechanism to prevent clogging
• Fully automatic operation

Applications:

• Sewage Treatment Plants (STP)
• Effluent Treatment Plants (ETP)
• Industrial sludge treatment systems
• Municipal wastewater treatment

Advantages:

• Requires smaller footprint compared to conventional systems
• Suitable for continuous 24-hour operation
• Reduces civil and installation cost
• Low maintenance and low wash water consumption
• Suitable for low to medium sludge concentration

Suitable For:

• Plants with limited installation space
• Retrofit projects
• Small to medium capacity STP/ETP

Construction & Material:

• Stainless Steel (SS 304 / SS 316) construction
• Corrosion-resistant design
• Heavy-duty screw and ring assembly

Selection Note:

Selection depends on sludge characteristics, flow rate, and desired dryness. Technical support can be provided for proper sizing.
