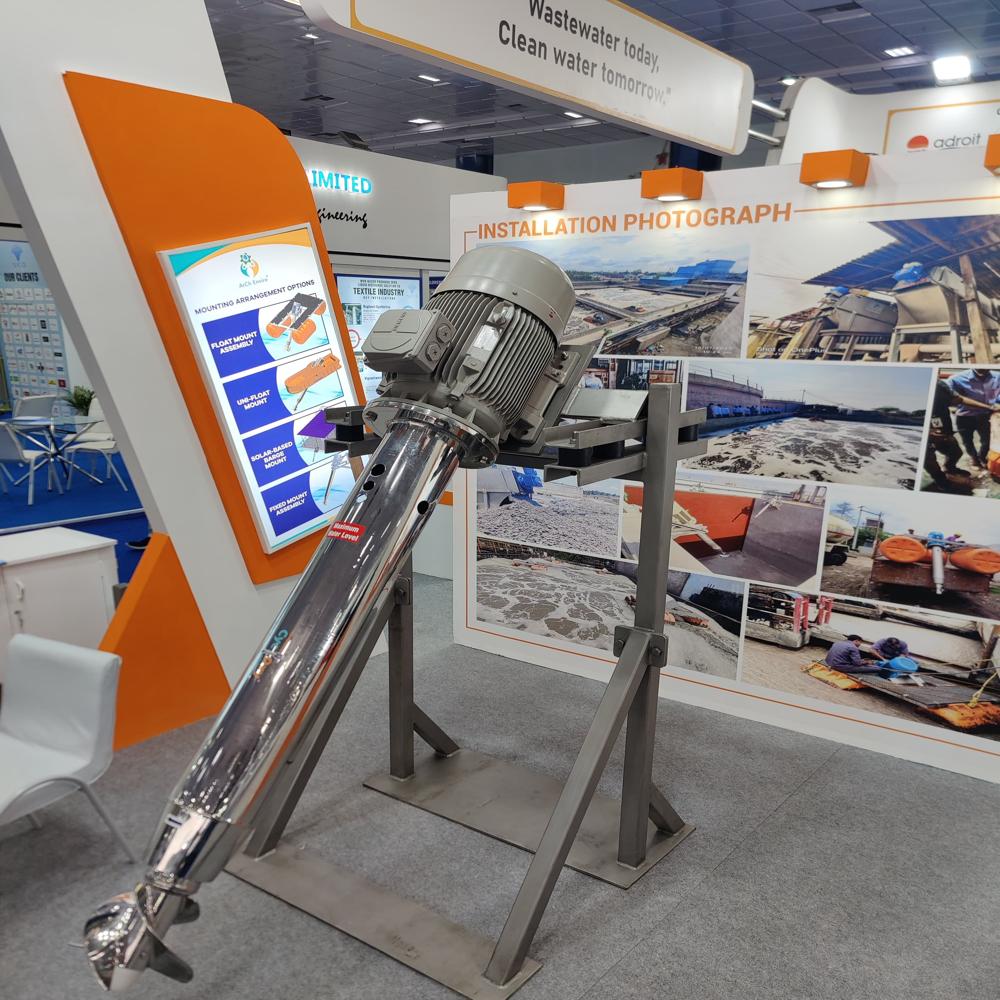

Cycloxy Jet Aspirator - Aerator

Cycloxy Jet Aspirator - Aerator About

ArCh Enviro Equipment Pvt. Ltd. manufactures advanced CyclOxy Jet Aspirator Aerators for efficient aeration and mixing in Sewage Treatment Plants (STP), Effluent Treatment Plants (ETP), industrial wastewater treatment plants, and municipal wastewater applications. CyclOxy is an innovative and indigenously developed jet aeration technology designed for high oxygen transfer efficiency, superior mixing performance, and low operational maintenance.

The CyclOxy Jet Aspirator Aerator operates using a specially engineered Air Jet Screw, Hollow Shaft, Housing Assembly, and Electric Motor running at 1400 RPM. The system creates a vacuum effect that draws atmospheric air through intake ports and disperses fine air bubbles underwater, ensuring effective oxygen transfer and powerful mixing inside the aeration tank.

This advanced aeration system enhances dissolved oxygen levels, supports efficient biological treatment, and improves the breakdown of organic matter in wastewater treatment processes.

Applications:

• Sewage Treatment Plants (STP)
• Effluent Treatment Plants (ETP)
• Industrial Wastewater Treatment
• Municipal Wastewater Treatment
• Aeration Tanks
• Equalization Tanks
• Biological Treatment Processes
• Mixing & Oxygenation Applications



Key Features:

• High Oxygen Transfer Efficiency (1.8 to 2.0 Kg O2/kW-hour)
• Dual Functionality Efficient Aeration & Powerful Mixing
• Complete Aeration Equipment in Itself
• No Additional Accessories Like Blowers or Piping Required
• Silent Operation with Low Noise Level
• No Membrane Chocking or Frequent Cleaning Required
• User-Friendly Operation
• Low Maintenance Requirement
• Easy and Flexible Installation Options

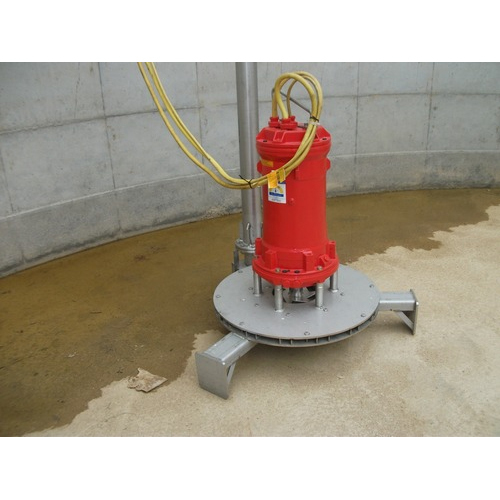

• Available in Float Mount, Uni-Float Mount & Fixed Mount Assembly
• Wetted Parts in Stainless Steel 304/316
• Mounting Structures in Stainless Steel 304/316
• High Buoyancy Puff-Filled Floats
• Durable and Corrosion-Resistant Construction
• Energy-Efficient Performance
• Long Service Life



Benefits:

• Improves wastewater treatment efficiency
• Reduces operational and maintenance costs
• Ensures uniform oxygen distribution
• Enhances biological treatment performance
• Suitable for continuous industrial operation
• Simplified installation and maintenance process



CyclOxy Jet Aspirator Aerators are designed to deliver reliable aeration performance with optimized energy consumption for wastewater treatment industries across India.
