About Aeration and Mixing System for STP, ETP & CETP Treatment Plants

Product Overview

CyclOxy Jet Aspirator Aerator is a patented aeration and mixing system developed for biological wastewater treatment applications. Designed for Sewage Treatment Plants (STP), Effluent Treatment Plants (ETP), and Common Effluent Treatment Plants (CETP), the equipment performs two critical treatment functions simultaneously oxygen transfer and wastewater mixing.

The advanced aspirator mechanism draws atmospheric air and disperses it throughout the wastewater, while the powerful hydraulic action ensures effective mixing across the treatment tank. This combination helps maintain dissolved oxygen levels and uniform treatment conditions necessary for efficient biological processes.

Dual Function Technology

Unlike conventional aeration systems that focus only on oxygen transfer, CyclOxy combines:

Efficient Aeration

Provides oxygen required for biological treatment processes.

Powerful Mixing

Maintains homogeneous conditions throughout the aeration tank and prevents stagnant zones.

The result is a complete aeration and mixing solution suitable for a wide range of wastewater treatment applications.

Key Features

Aeration and Mixing in One Equipment

Patented Jet Aspirator Technology

Efficient Oxygen Transfer

Uniform Wastewater Mixing

No Blower Required

No Diffuser Membranes

Reduced Maintenance Requirements

Simple Installation

Stainless Steel 304 / 316 Construction

Suitable for Continuous Operation

Multiple Mounting Configurations Available

Suitable for New and Existing Plants

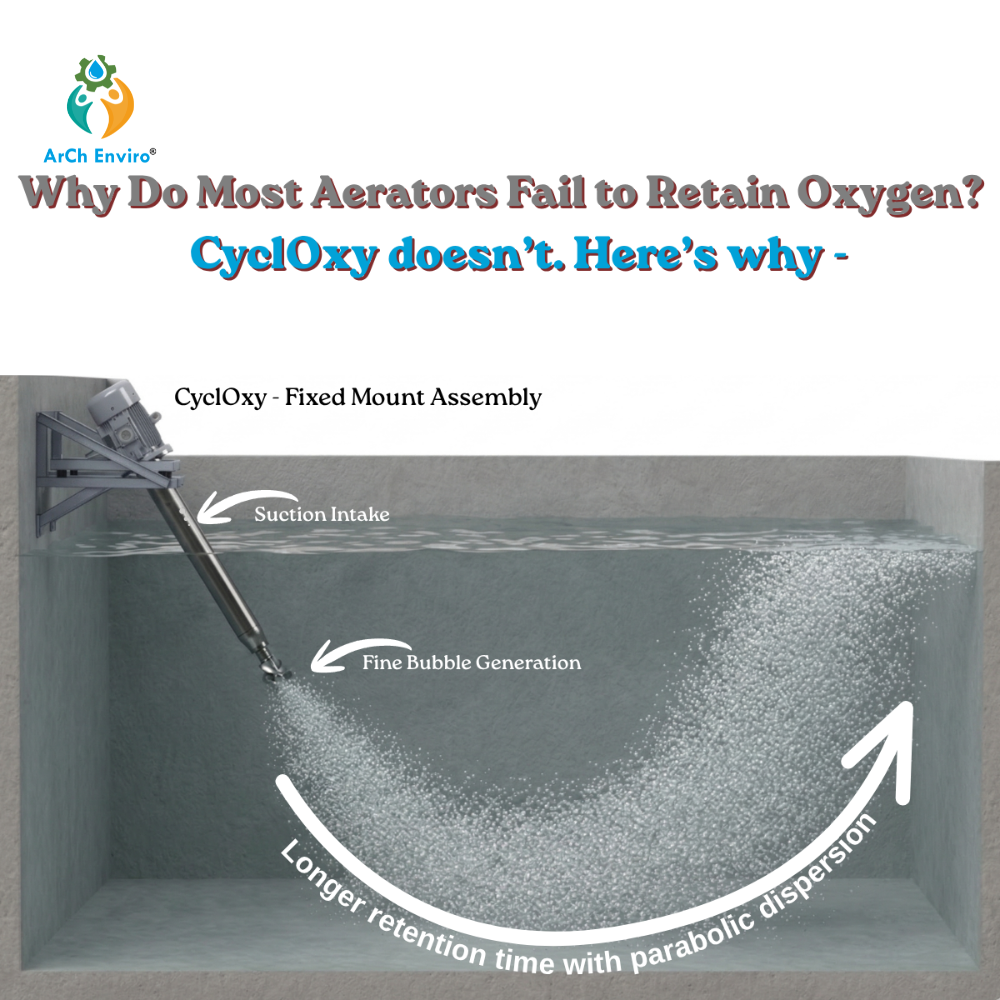

Working Principle

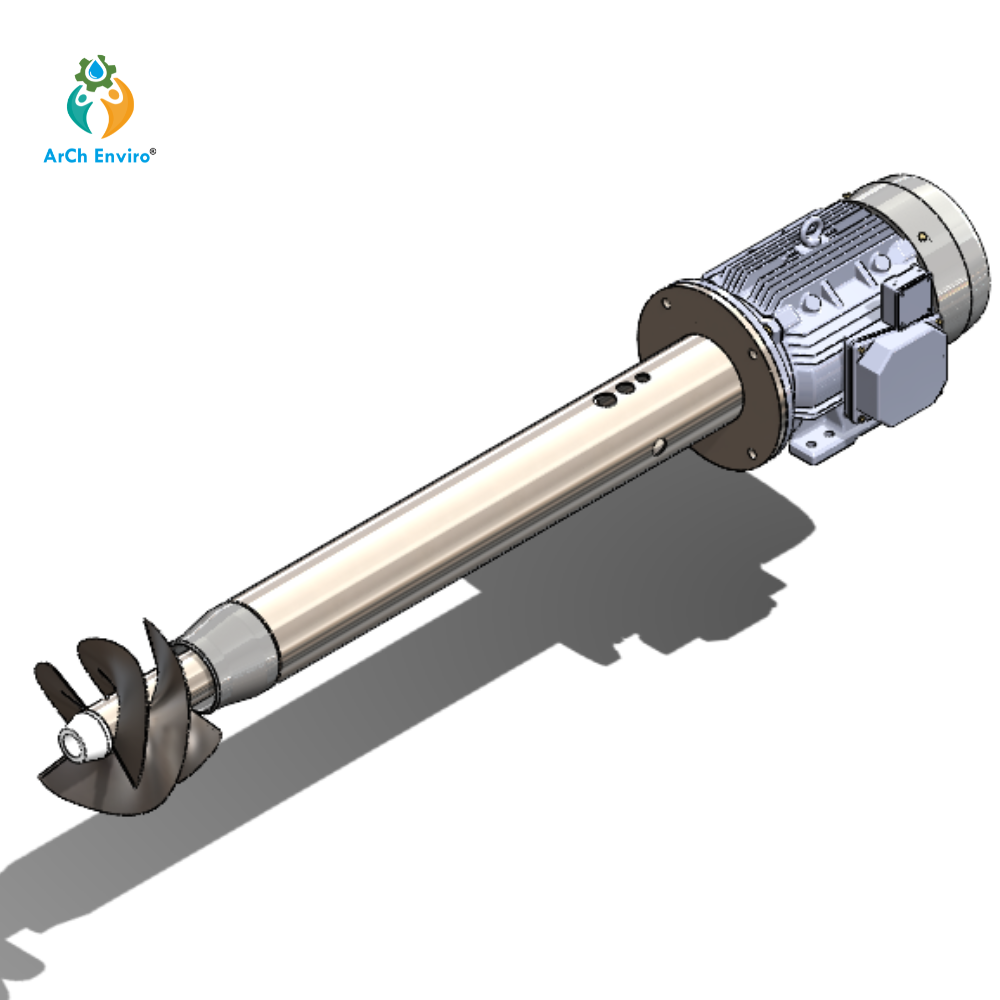

The CyclOxy system utilizes a specially engineered aspirator assembly driven by an electric motor.

As the assembly rotates, it creates a vacuum that draws atmospheric air into the system. The air is discharged beneath the liquid surface as fine bubbles, promoting oxygen transfer. Simultaneously, the rotating assembly generates hydraulic movement that provides effective mixing throughout the wastewater tank.

This dual-action operation supports biological treatment performance and improves overall process efficiency.

Applications

Aeration Tanks

Maintains oxygen levels and mixing conditions required for biological treatment.

Equalization Tanks

Provides wastewater mixing and prevents settling.

STP Plants

Supports municipal sewage treatment processes.

ETP Plants

Suitable for industrial wastewater treatment facilities.

CETP Plants

Provides aeration and mixing for centralized treatment systems.

Benefits

Improved Oxygen Distribution

Promotes dissolved oxygen availability throughout the treatment tank.

Enhanced Mixing Performance

Ensures wastewater remains uniformly mixed.

Reduced Equipment Requirement

Combines two treatment functions into a single system.

Simplified Plant Operation

Eliminates the need for separate mixing and aeration equipment.

Lower Maintenance

No diffuser membranes and no external blower system.

Industries Served

• Municipal Sewage Treatment

• Textile Industry

• Pharmaceutical Industry

• Chemical Industry

• Food Processing Industry

• Dairy Industry

• Beverage Industry

• Paper & Pulp Industry

Frequently Asked Questions

What is an aeration and mixing system?

An aeration and mixing system provides oxygen transfer and wastewater circulation simultaneously to support biological treatment processes.

Why is mixing important in wastewater treatment?

Mixing helps maintain uniform conditions, prevents settling, and improves oxygen distribution throughout the treatment tank.

Can CyclOxy replace separate mixers?

Depending on the application and process requirements, CyclOxy provides both aeration and mixing functions in a single equipment package.

Is the system suitable for STP and ETP plants?

Yes. CyclOxy is designed for STP, ETP, and CETP wastewater treatment applications.

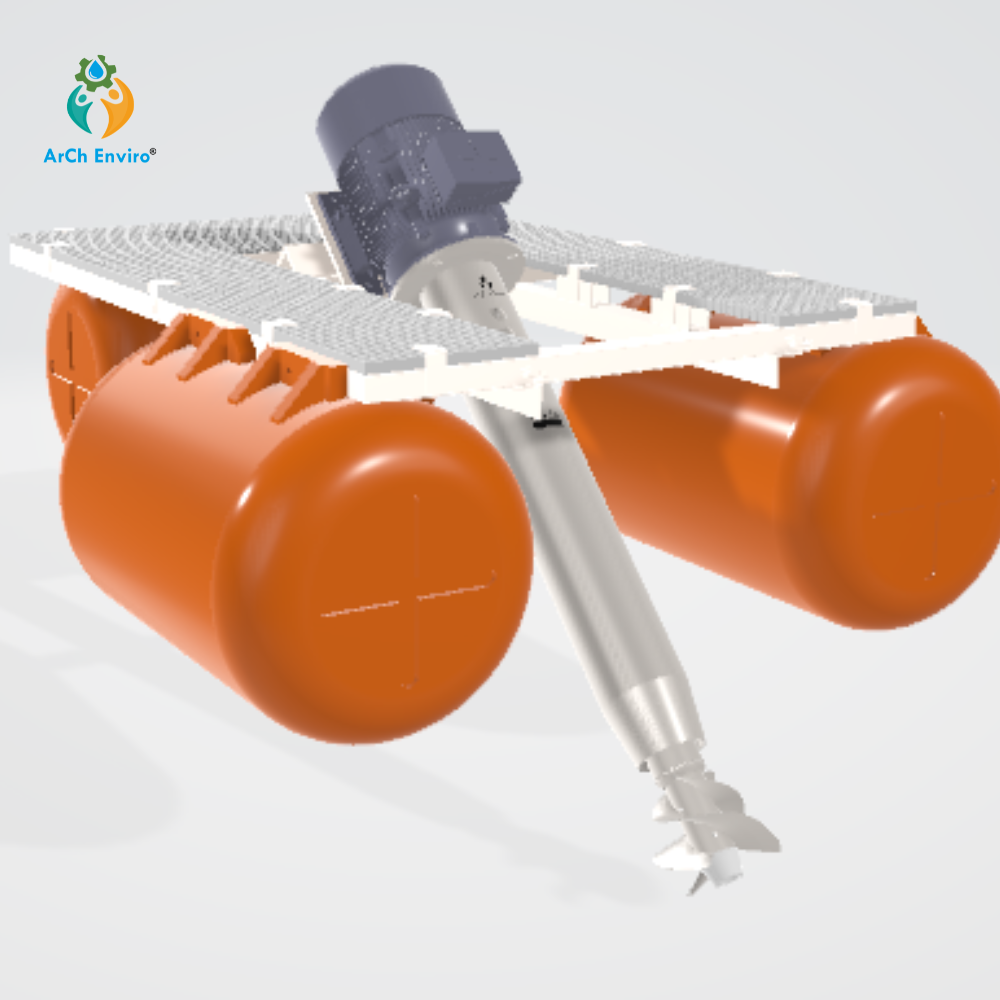

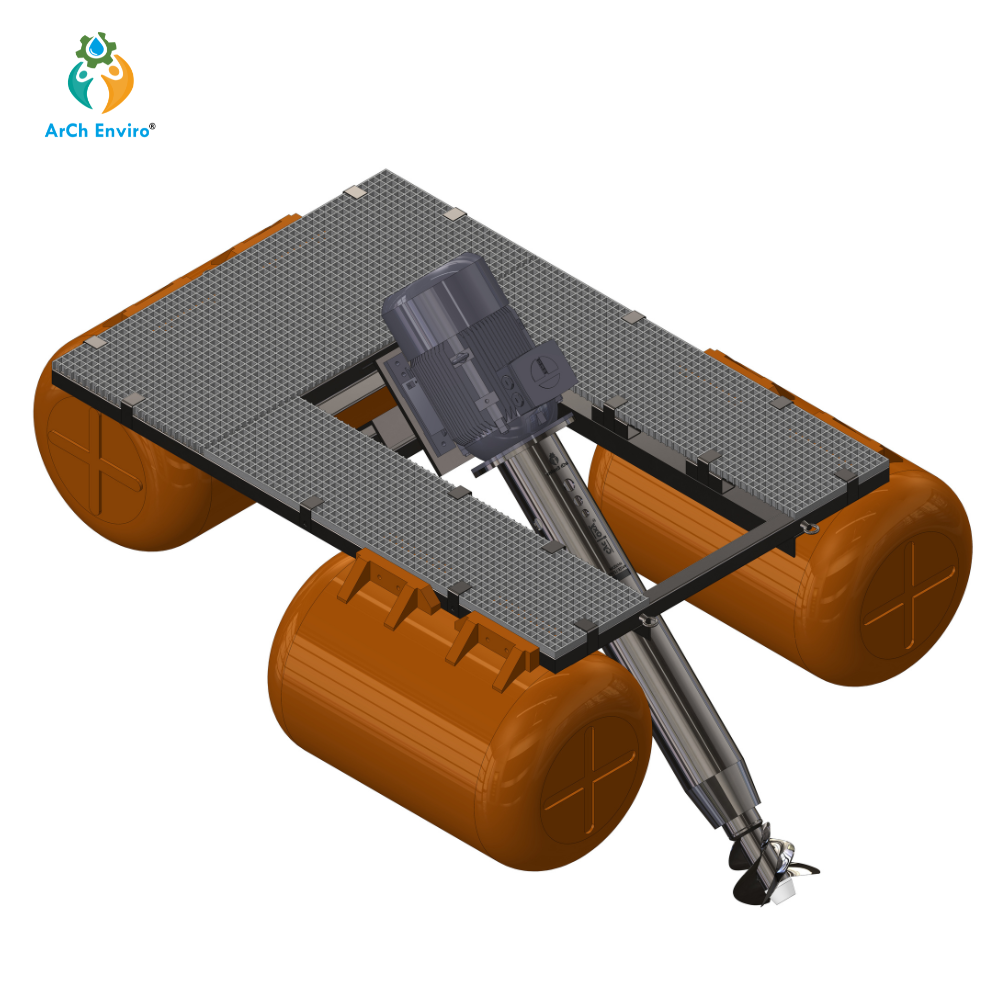

What mounting options are available?

Fixed Mount, Uni Float, and Floating configurations are available.
